Turnstile Gate Manufacturer — Shenzhen Factory Since 2008

Product Lines

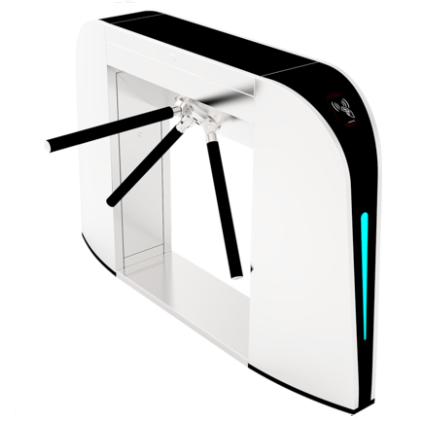

Tripod Turnstile Gates

A mechanical workhorse for entrances that need controlled, one-person-at-a-time passage without a large footprint. Our tripod turnstile gates use 304 stainless steel housings with a minimum material thickness of 1.3 mm, a nominal 40 persons per minute throughput, an IP54 rating, and a mechanism with a nominal 5-8 million cycle rating (figures for the listed model). Passage width is up to 600 mm.

Speed Gates

For higher-end lobbies, offices, and transit-style entrances where speed and appearance both matter. The speed gate turnstile platform includes the AG-HX65151002: SUS304 housing, 1500x100x1000 mm, 600 mm passage width, brushless DC motor, 0.2 s response (verification to panel start), a nominal 40 persons per minute throughput, bidirectional operation, voice and LED indicators, and an operating range of -20°C to 70°C.

Flap Barriers

A balanced option between optical speed gates and physical tripod arms. Our flap barrier gates use 304 stainless steel housings, open in 0.8 s, and are rated at a nominal 30 persons per minute on the listed configuration. They suit corporate entrances, building lobbies, and access points where a visible physical barrier is required.

Swing Barriers

The swing barrier gate range includes the AX-Y002 (≤600 mm passage on the listed model): 304 stainless steel housing, 0.7 s swing opening, a nominal 35 persons per minute, and a 1-year warranty. Swing barriers are frequently specified for hospitals, stations, and mixed pedestrian traffic.

Full Height Turnstiles

Suited to perimeter entrances, stadiums, and industrial sites that need a stronger physical barrier than waist-height gates. Full height turnstiles are built in SS304 with minimum 1.5 mm material on the listed model, a nominal 50 persons per minute, an IP54 rating, and an RS485 interface for integration with access-control systems.

Boom Barrier Gates

Vehicle access control for parking lots, toll points, and site gates. The boom barrier gate range includes a DC 24 V motor version with 3-6 s open/close times, an arm length of 1-6 m, a mechanism rated for at least 5 million cycles, 304 stainless steel construction, and a -40°C to +70°C operating range. The brushless DC660Y-L/M/R models offer 5.5 / 3.5 / 2 s open times and 45-110 N.M torque.

Parking Systems

Barriers, parking locks, and access-control components for complete vehicle and pedestrian systems. The parking barrier system range includes the remote control parking lock, with rise/lower time of 6 s or less, 420 mm raised and 75 mm lowered height, remote range of at least 15 m, RF 433 MHz, DC 6 V power, and a 460x460x90 mm, 10 kg enclosure.

Selection Guidance: Three Questions Before You Specify

First, indoor or outdoor? Operating temperatures differ across the range — the DC boom barrier is rated -40°C to +70°C, while the brushless DC660Y models are rated -20°C to +50°C. Match the rating to the site, not to the brochure. Second, what throughput must the lane handle? Published figures are nominal values from the corresponding model specifications — tripod turnstiles and speed gates list 40 persons per minute, flap barriers 30, swing barriers 35, and full height turnstiles 50. Actual throughput depends on credential verification speed, gate configuration, and pedestrian behavior, so size lane counts against your site's real verification method and peak flow. Third, what security level is required? Tripod turnstiles and full height turnstiles provide continuous physical deterrence by design; speed gates and flap barriers present a lower physical barrier and rely on sensor-based detection plus the alarm or lockdown behavior specified for the project. Note that a published response time (for example 0.2 s on the speed gate platform) measures the interval from authorization to the start of panel movement, not the full opening time or the full passage cycle. Compare security on the physical barrier itself, the detection functions actually configured, and how tailgating is handled — not on indicator lights. Answer these three and the shortlist becomes obvious.

OEM/ODM Capability

Our in-house R&D team supports OEM and ODM programs from drawing to production. Customization requirements are evaluated per project and confirmed at quotation. Buyers sourcing mechanisms rather than finished lanes can work with our compact turnstile mechanism OEM line (stated as patented by the company): alloy steel tripod wheel, semi-automatic rotation, and adjustable damping. For biometric and credential integration, we support face recognition integration with turnstile gates through standard interfaces such as RS485 — a solution capability rather than a fixed catalogue model. OEM and custom projects are quoted per project.

Manufacturing Evidence

Specifications on this page are taken from the corresponding product specification records, not marketing language. The AG-HX65151002 speed gate is specified at 40 persons per minute with a brushless DC motor drive, 0.2 s response, and a -20°C to 70°C operating range. The DC boom barrier mechanism is rated for at least 5 million cycles. Pedestrian turnstile and barrier models listed above use SUS304 / 304 stainless steel housings per the product specification records. We are a manufacturer that states it holds ISO 9001 quality-management-system certification with CE-marked products (certificates available upon request — confirm they cover the quoted model, entity, and validity scope). Production uses sheet-metal equipment including punching, CNC, and laser cutting at the Shenzhen facility (as stated by the company).

Export Footprint

We export to 40+ countries across Europe, South America, North America, the Middle East, and Asia (as stated by the company). Regional distributors and project buyers are welcome to request specification sheets and factory details.

FAQ

What does the warranty cover?

One year. During the warranty period, replacement parts are provided and free technical consultation is offered.

What is the minimum order and lead time?

The minimum order quantity depends on the model and the extent of customization — confirm it when requesting a quotation, as no fixed figure is published for the range as a whole. Samples typically take 7-15 days. Standard production runs about 20-35 days. OEM and custom projects are quoted per project.

Do you support OEM?

Yes. OEM/ODM is supported by our in-house R&D team; the customization scope is evaluated per project and confirmed at quotation.

Can your turnstile gates be used outdoors?

Yes, with the correct model selection and site assessment. The tripod turnstile and full height turnstile carry IP54 ratings, and the DC boom barrier operates from -40°C to +70°C. Note that IP54 covers limited dust ingress and splashing water only; for continuous rain, standing water, or corrosive environments, confirm the configuration with the manufacturer. Confirm your site conditions when requesting a quote.

Request Factory Quotation

Send us your application scenario, the number of lanes required, and your project location. Our team will respond with a factory quotation and the model specifications that fit your site. Contact us to start.
